Name: Diesel Engine Timing Crankshaft Locking Tool Kit For VW Audi Golf Skoda VAG 1.4 1.9 2.0TDi - gastotal-tools.com
Brand: Repair Kits and Tools
SKU: 1005006011325471
Price: 16.30 EUR
Availability: InStock

Diesel Engine Timing Crank Locking Tool Kit VAG 1.2 1.4 1.9 2.0 TDI PD T10050 T10100 specifically designed for belt driven diesel engines. Used for locking the diesel engine camshaft, crankshaft, and diesel pump while setting the timing belt.

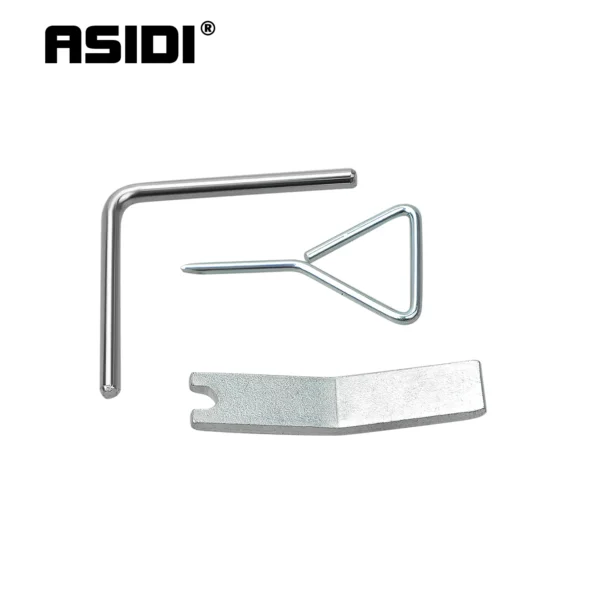

It Includes 2 crankshaft locking tools, 2 Ball end pins,1 L shape pin, Triangular grip pin. Type A for round sprockets at 12 O’clock position on bored engines (T10050) and Type B for oval sprockets at 1 O’clock position non-bored engines (T10100).

Universal usage for many VAG group vehicles with 1.4 / 1.9 / 2.0 TDi engines. Also suitable for Ford Galaxy models with ASZ and ASZ1 VAG engines.

The tool made of high quality steel, high hardness and rust-resistant and corrosion-resistant.

Applicable：

For car brands:
Fit for VW (1998-2011): Lupo, Fox, Polo, Golf Plus, Bora, Jetta, Beetle, Scirocco, Passat, – Sharan, Touran, Tiguan, Caddy, Transporter.
Fit for Audi (1998-2011): A2, A3, A4, A5, A6, TT, Q5.
Fit for Skoda (2000-2011): Fabia (II), Roomster, Octavia, Superb (II).
Fit for Seat (1999-2011): Arosa, Ibiza, Cordoba, Altea/XL, Leon, Toledo, Alhambra.

For the engines:
1.2 TDI: ANY, AYZ.
1.4 TDI: AMF, ATL, BAY, BHC, BNM, BNV.
1.9 TDI: AJM, AMG, ANJ, ARL, ARX, ASZ, ATD, ATJ, AUY, AVB, AVF, AVQ, AWX, AXB, AXC, AXR, BEW, BJB, BKC, BKE, BLS, BLT, BMT, BPX , BRBR, BRM, BRU, BSU, BSV, BSW, BTB, BVK, BXE, BXF.
2.0 TDI: AZV, BKD, BDJ, BDK, BGW, BHW, BKP, BLB, BMA, BMN, BMP, BMR, BNA, BPW, BRC, BRE, BRF, BRT, BSS, BUY, BUZ, BE, BVF, BVG , BVH, BVW.

For common rail engines:
1.6 TDI: CAYA, CAYB, CAYC.
2.0 TDI: CAGA, CACB, CAGC, CAHA, CAHB, CBAA, CBAB, CBAC, CBBA, CBDA, CBDB, CBDC, CBEA, CBGA.

Specification：

Material: 45# Carbon steel
OEM CODE: T10050 / 310-085, T10100, T20102 / 3359, T10060A / T40098, T10115.
Crank Lock Size (Large): 2″ (51mm)
Crank Lock Size (Small): 1.8″ (45mm)
Ball End Pin Size: 3.3″ x 1″ (85mm x 25mm)
L Shape Pin Size: 2.2″ x 1.8″ (55mm x 45mm)
Triangular Grip Pin Size: 1.8″ x 1.2″ (45mm x 30mm)

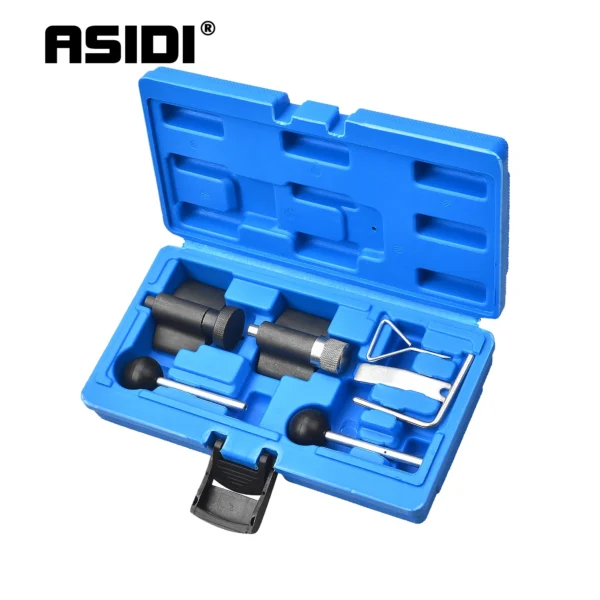

Includes：

2pcs x Ball end pin – VAG T20102
1pc x Locking mandrel – VAG T10060A
1pc x Locking pin – VAG T10115

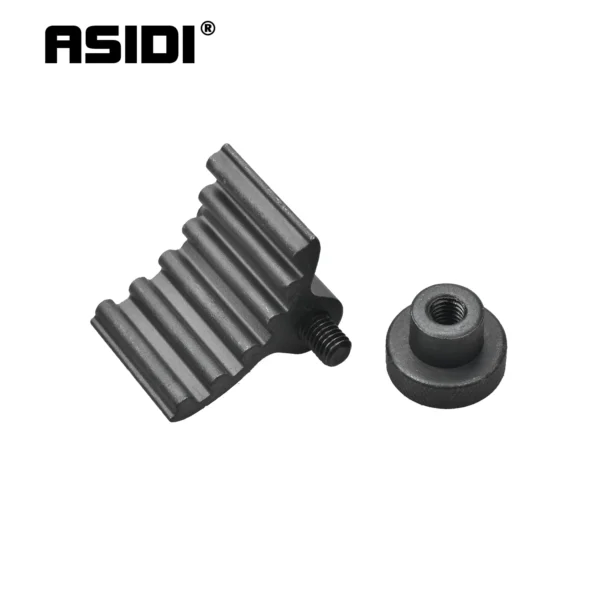

1pc x Crankshaft locking tool for round crankshaft – VAG T10050
1pc x Crankshaft locking tool for oval crankshaft – VAG T10100
