Camshaft Timing Locking Pulley Tool Belt Adjustment Sprocket Wrench For VW Audi Golf

Attention!!!

1. We don’t have a manual for this product. If you don’t know how to use it, please contact us.

2. The color of the box is red or blue. If you mind, please contact us first.

3. We don’t ship to the following area from our European warehouse

        *Spain: Canary Island, Balearic Islands

*France: French Polynesia, Reunion Island

*Portugal: Madeira & Azores

4. The container may have dents or cracks during transportation, but does not affect the use of   tools, please understand

Description:

To assemble and disassemble the pulleys on the camshaft, vibration and oil pump.

For professional mounting and dismounting of the camshaft, replacement of the timing belt, testing and adjustment of the camshaft timing, crankshaft locking, etc. Comparable  with VAG    3036 (T 10172 )

Suitable for VAG vehicles with diesel and petrol engines, for Audi, for Seat, for Skoda, for VW, for VW commercial vehicles, etc.

Total length 420mm maximum width of the opening 140mm complete with 4 pins.

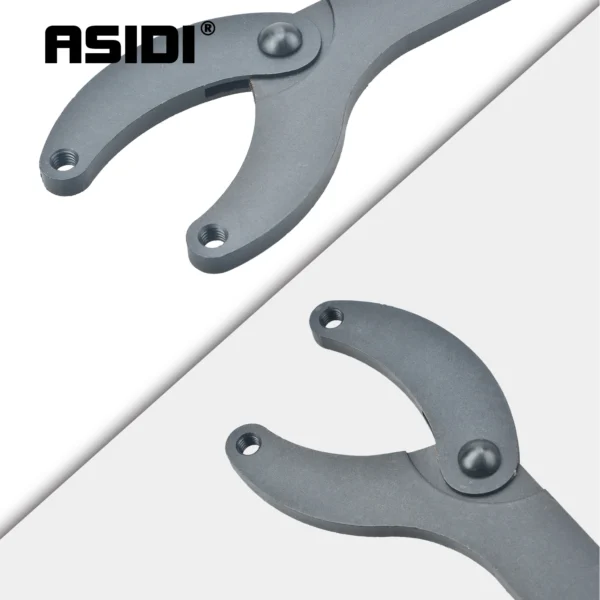

Stable for the camshaft, with replaceable pins.

Specifications:

Material: Alloy, Steel

Color: As picture shown

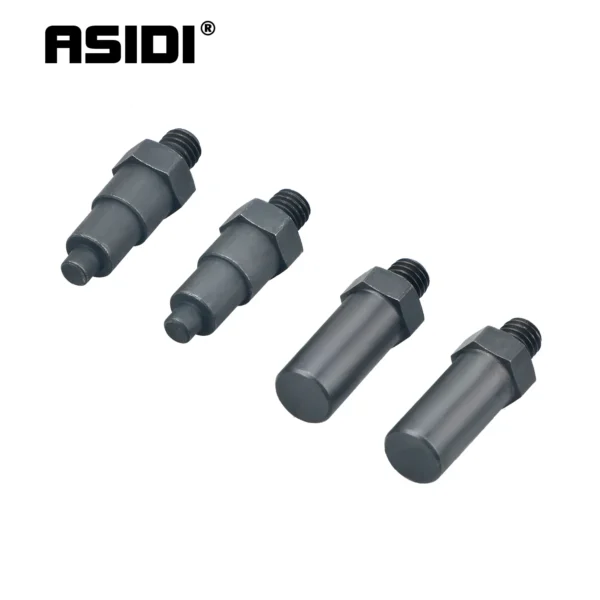

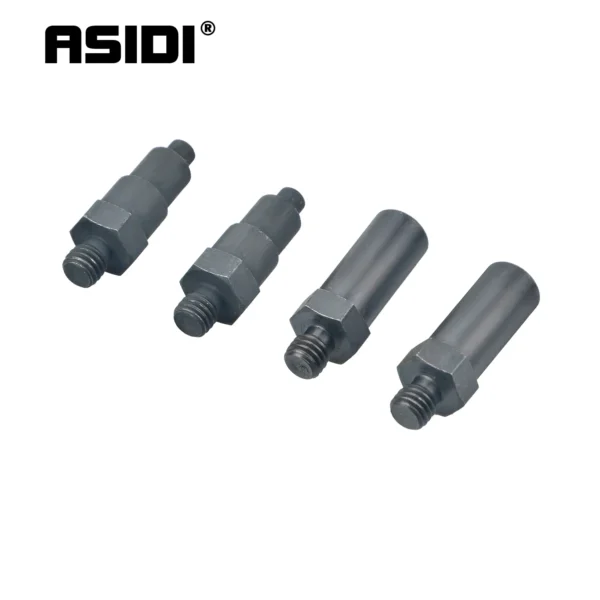

Additionally it is equipped with 2 sets of replaceable pins:

1 x SET: length 38.2, 11.5 diameter

1 x SET: length 38.2, 3 x stage diameter 12/10/6 mm

Package List：

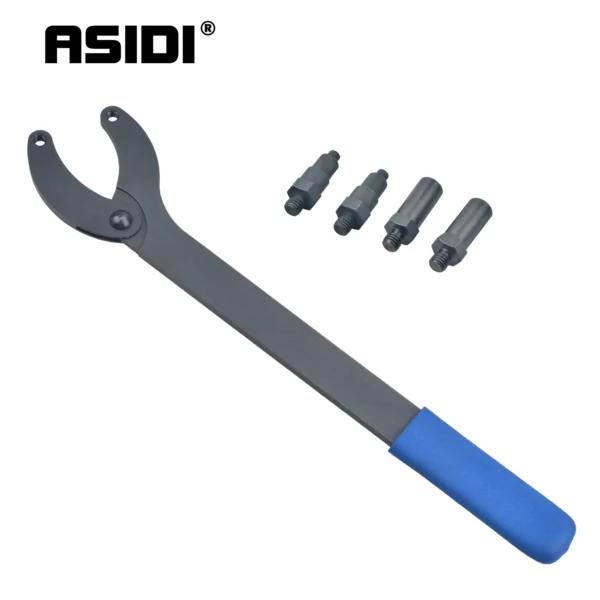

1 Piece Wrench Tool
